How to Set Up Internal Traffic Filters in GA4 (Don't Skip This).

In Universal Analytics, excluding internal traffic was a single IP filter in the View settings. In GA4, it's a three-step process that many teams don't complete — leaving their data polluted by hundreds of internal pageviews, test transactions, and debugging events every day. Worse, some teams create the filter but never activate it, thinking the job is done.

Internal traffic is particularly damaging because it skews your most important metrics: conversion rates look different when 50 daily test transactions are mixed in, bounce rates are distorted by developers testing page loads, and audience data becomes unreliable when your team's browsing behavior is included. This guide walks through the complete setup and covers edge cases like remote workers, VPNs, and dynamic IPs.

Why Internal Traffic Filtering Matters

Why Internal Traffic Matters More Than You Think

Here's what internal traffic does to your data:

• Inflated session counts: A 10-person marketing team browsing the site daily can add 200+ fake sessions per month.
• Distorted conversion rates: QA testing purchase flows adds test transactions that inflate ecommerce revenue and conversion metrics.
• Corrupted audience data: Your team's behavior patterns (visiting admin pages, testing features) contaminate the behavioral data that GA4 uses to build audiences and model conversions.
• Unreliable A/B test results: If your team sees both variants of an experiment without being filtered, it adds noise to your test data.
• Skewed engagement metrics: Developers with DevTools open generate unusual session durations and scroll depths.

The Three-Step Setup

Step 1: Define Internal Traffic Rules

The first step tags incoming traffic as "internal" based on IP addresses. This doesn't filter anything yet — it just adds a label.

1. Go to Admin → Data Streams → select your stream.
2. Click Configure Tag Settings → Show All → Define Internal Traffic.
3. Click Create to add a rule.
4. Give it a descriptive name (e.g., "Office - New York HQ").
5. Set the traffic_type parameter value to internal (this is the default).
6. Add your IP addresses using the match type options:
   • IP address equals: For a single IP address.
   • IP address begins with: For IP ranges (e.g., "192.168.1" covers 192.168.1.0-255).
   • IP address is in range (CIDR): For subnet notation (e.g., "10.0.0.0/8").
   • IP address matches regex: For complex patterns.
7. Click Create to save the rule.

Pro tip: To find your current IP address, search "what is my IP" in Google. For office networks, ask your IT team for the public IP range — don't just use your personal device's IP, as NAT may mean many devices share one public IP.

Step 2: Create a Data Filter

The data filter uses the traffic_type parameter from Step 1 to determine what to exclude.

1. Go to Admin → Data Settings → Data Filters.
2. GA4 usually has a default "Internal Traffic" filter already created — check if it exists. If not, click Create Filter.
3. Select filter type: "Internal Traffic".
4. Name it descriptively (e.g., "Exclude Internal Traffic").
5. The filter will automatically use the traffic_type parameter value internal from Step 1.
6. Leave the filter state as "Testing" for now (we'll activate it in Step 3 after verification).

Step 3: Test and Activate the Filter

This is the step most teams miss. New data filters start in "Testing" mode — they tag data for comparison but don't actually exclude it. You must manually switch to "Active" mode for the filter to work.

Testing the Filter Before Activation

1. With the filter in Testing mode, go to Realtime Report.
2. Click "Compare" and add a comparison for "Test data filter name" equals your filter name.
3. Browse your site from an internal IP address.
4. Verify that the Realtime report shows your traffic being correctly identified as internal in the comparison view.
5. If the filter is working correctly in Testing mode, change the filter state to "Active".

Edge Cases and Common Mistakes

Handling Edge Cases

Remote Workers with Dynamic IPs

Remote teams often have ISP-assigned dynamic IPs that change regularly. Options for handling this:

• Corporate VPN: If your team uses a VPN, add the VPN's exit IP addresses to the internal traffic rules. This is the cleanest solution.
• IP range: Add the IP ranges used by your team's ISPs. This is broader than ideal but catches most internal traffic.
• Browser extension approach: Use a Chrome extension or bookmark to set a custom dimension (like traffic_type=internal) via data layer push, then filter on that dimension. This method works regardless of IP but requires every team member to install the extension.
• GTM cookie-based: Create a special URL (e.g., yoursite.com/?set_internal=true) that sets a cookie. Create a GTM trigger that fires when this cookie is present, tagging the traffic as internal.

Multiple Offices and Locations

You can create multiple internal traffic rules — one for each office location. Name them descriptively (e.g., "Office - London", "Office - San Francisco", "VPN - Corporate") so you can manage them easily as your company grows.

Developer/Staging Environments

If your staging or development environments use the same GA4 Measurement ID as production, all dev/staging traffic goes to your production GA4 property. Solutions:

• Separate Measurement IDs: Use different GA4 properties for production, staging, and development (recommended).
• Hostname filter: Create a custom data filter that includes only your production domain, excluding staging subdomains.

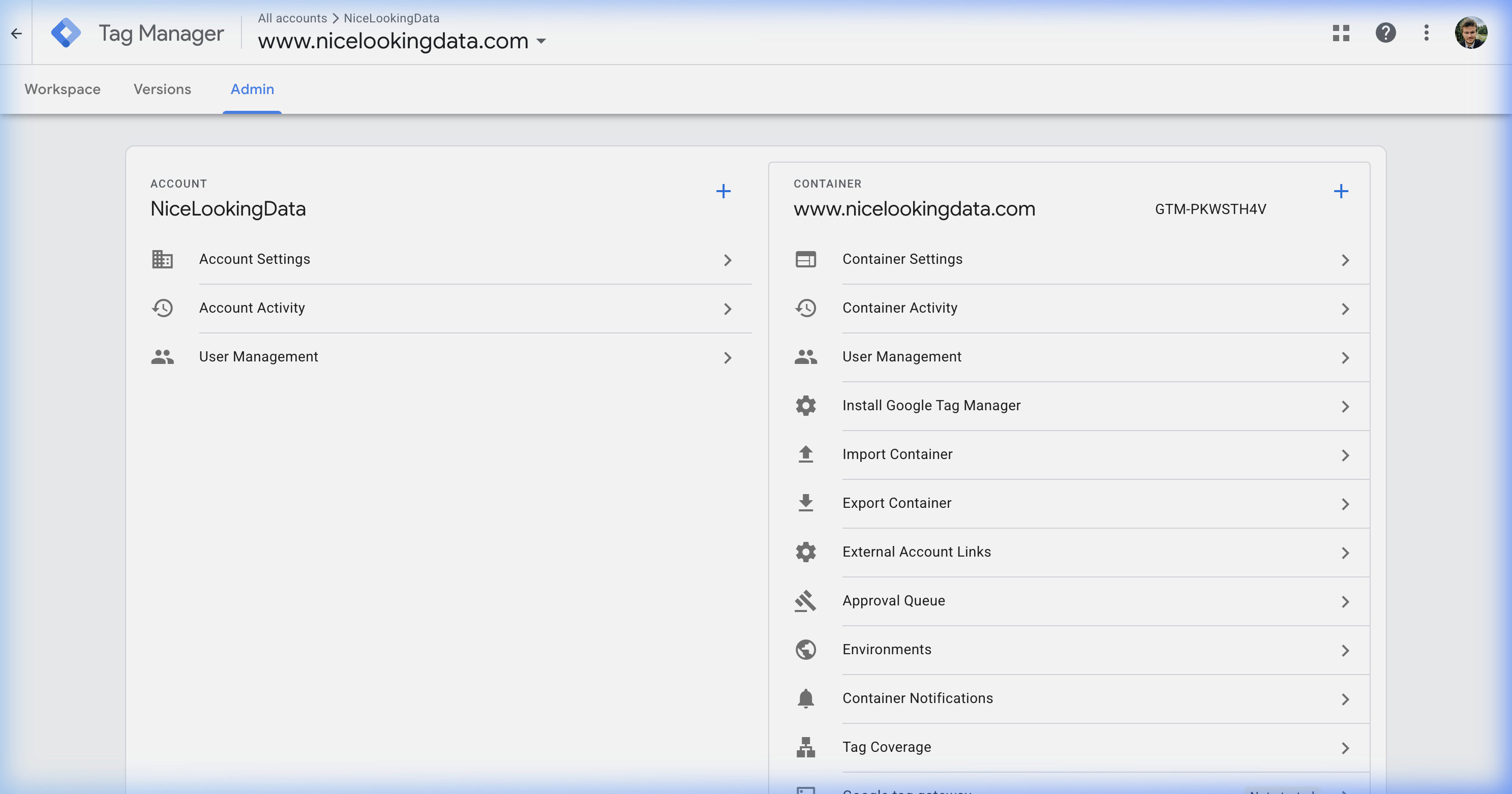

• GTM environment configuration: Use GTM Environments to prevent tags from firing on non-production domains.

Common Mistakes

• Creating the rule but not the filter: Step 1 only labels traffic — without Step 2 and 3, nothing is excluded.
• Creating the filter but leaving it in Testing mode: The most common oversight. The filter exists but isn't actually excluding data.
• Filtering too broadly: Using an IP range that's too wide can accidentally exclude customer traffic. Always test before activating.
• Forgetting to update IPs: When your company moves offices or changes ISP, the old IP rules no longer apply. Review internal traffic rules annually.
• Not filtering developer traffic: Development and QA teams generate the most distortive traffic — especially test transactions.

Key Takeaways

• GA4 internal traffic filtering requires 3 steps: define rules, create filter, activate filter — most teams miss the activation step.
• Test the filter using Realtime comparisons before switching from Testing to Active mode.
• Filtered data is permanently excluded — there is no way to recover it, so test thoroughly first.
• For remote teams with dynamic IPs, use VPN-based filtering or cookie-based approaches.
• Use separate GA4 properties for staging/development environments to keep production data clean.

Frequently Asked Questions

How do I filter internal traffic in GA4?

GA4 internal traffic filtering requires three steps. First, define internal traffic rules in Admin → Data Streams → Configure Tag Settings → Define Internal Traffic — this tags matching IP addresses with a traffic_type parameter set to internal. Second, create a data filter in Admin → Data Settings → Data Filters that targets the internal traffic type. Third, and most critically, change the filter state from Testing to Active. Many teams complete the first two steps and stop, not realizing that a filter in Testing mode does not exclude any data.

What is the traffic_type parameter in GA4?

The traffic_type parameter is a label GA4 attaches to events when the incoming IP address matches a rule you've defined in the internal traffic settings. Setting a rule assigns the value internal to this parameter for all matching traffic. The data filter then looks for this parameter value to decide what to exclude. You can technically set any string as the parameter value — not just internal — which means advanced setups can create multiple named traffic types (for example, distinguishing "office" from "agency") and apply different filters to each.

Can I filter by IP address in GA4?

Yes. GA4's internal traffic rules support four IP matching methods: exact match for a single address, "begins with" for covering a range of addresses sharing a common prefix, CIDR notation for subnet-based filtering, and regex for complex custom patterns. One important distinction from Universal Analytics: GA4 only uses the IP address as a signal to assign the traffic_type parameter — the actual exclusion happens through the data filter, not directly through the IP rule. This two-step architecture means both components must be configured and the filter must be Active for any exclusion to occur.

Why is my GA4 internal traffic filter not working?

The most common reason is that the data filter is still set to Testing mode, not Active. Verify this in Admin → Data Settings → Data Filters. The second most common cause is that the IP address in the internal traffic rule doesn't match your current public IP — this happens when your ISP changes your IP, when you're working from a different network, or when your office uses a different public IP than expected (check with your IT team). A less common cause is a browser extension or privacy tool that routes traffic through a proxy, changing the IP that GA4 sees.

Does GA4 internal traffic filtering remove historical data?

No. GA4 data filters only apply to data collected after the filter is set to Active. Historical data that was already processed remains in your reports unchanged, including any internal traffic that entered before the filter existed. This is different from a view filter in Universal Analytics, which also only affected future data. There is no retroactive option in GA4 — once data is processed and stored, it cannot be modified or filtered after the fact. This is why testing thoroughly before activation matters: any legitimate traffic accidentally excluded during the testing window is not recoverable.

What is the difference between a testing filter and an active filter in GA4?

A Testing filter labels data for comparison purposes but does not exclude anything from your reports. You can see how the filter would affect your data by adding a comparison in the Realtime report, but your actual report numbers remain unaffected. An Active filter permanently excludes matching data from all reports, explorations, and audiences — the data is dropped at processing time and cannot be recovered. The Testing state exists specifically to let you verify the filter is catching the right traffic before committing to permanent exclusion. Always use Testing mode first, confirm the filter is working correctly in Realtime, then switch to Active.

How do I filter internal traffic when using a VPN?

When team members use a VPN, all their traffic appears to GA4 as originating from the VPN's exit IP address, not their home or office IP. The cleanest solution is to add your corporate VPN's exit IP addresses to the internal traffic rules. Contact your IT or network team for the specific IPs — VPN exit IPs are typically static and won't change without notice. If your team uses a consumer VPN with rotating exit IPs, an IP-based approach won't work reliably, and you'll need an alternative method such as a GTM cookie trigger or a browser bookmarklet that pushes traffic_type: "internal" to the dataLayer.

Can I filter traffic by hostname in GA4?

Not directly through the built-in internal traffic filter, which is IP-based. However, you can create a custom data filter that includes or excludes traffic based on hostname. In Admin → Data Settings → Data Filters, choose "Custom" as the filter type and configure it to filter on the hostname event parameter. This is particularly useful for excluding staging subdomain traffic when your staging environment shares the same GA4 property as production. A hostname inclusion filter — set to include only your production domain — ensures that staging and dev traffic never enters your production analytics data regardless of IP address.
